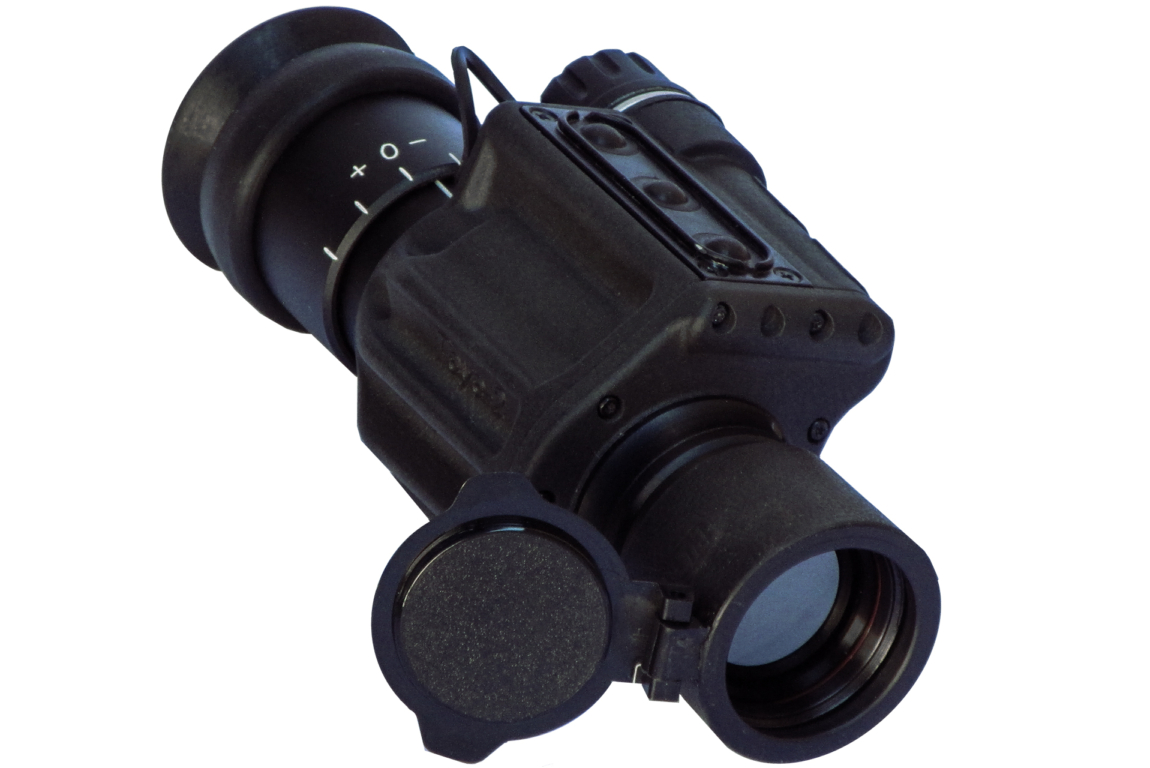

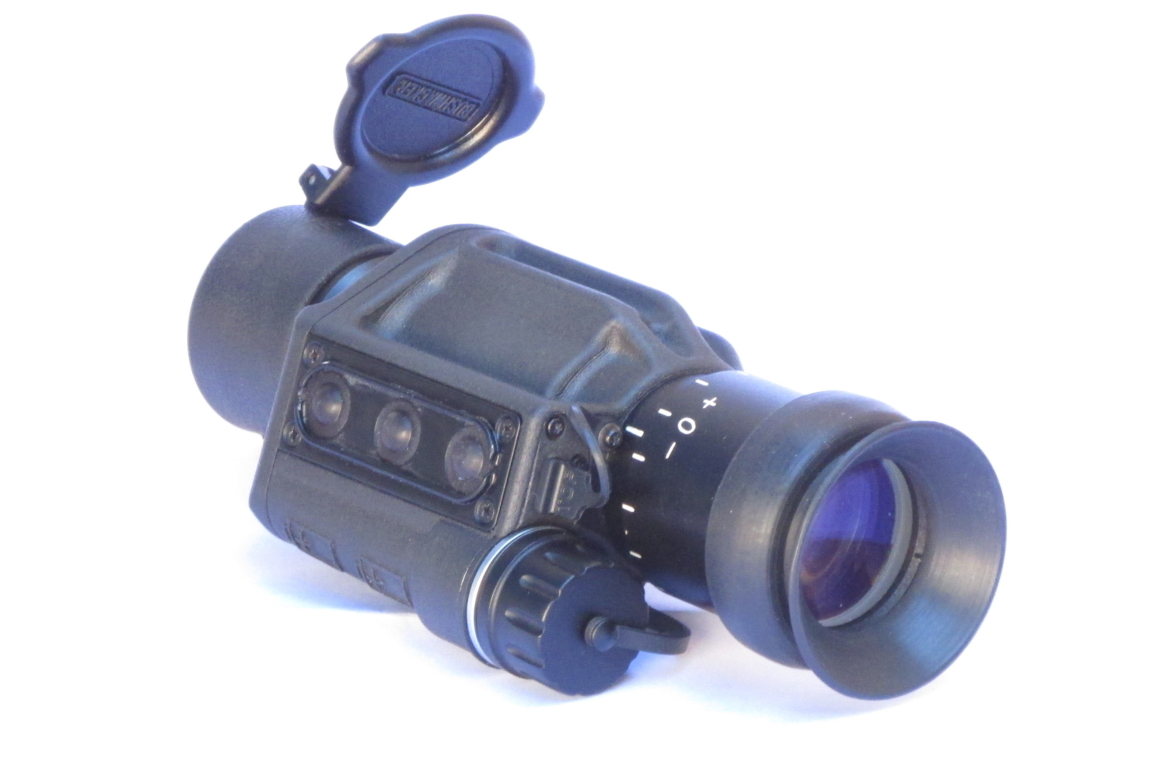

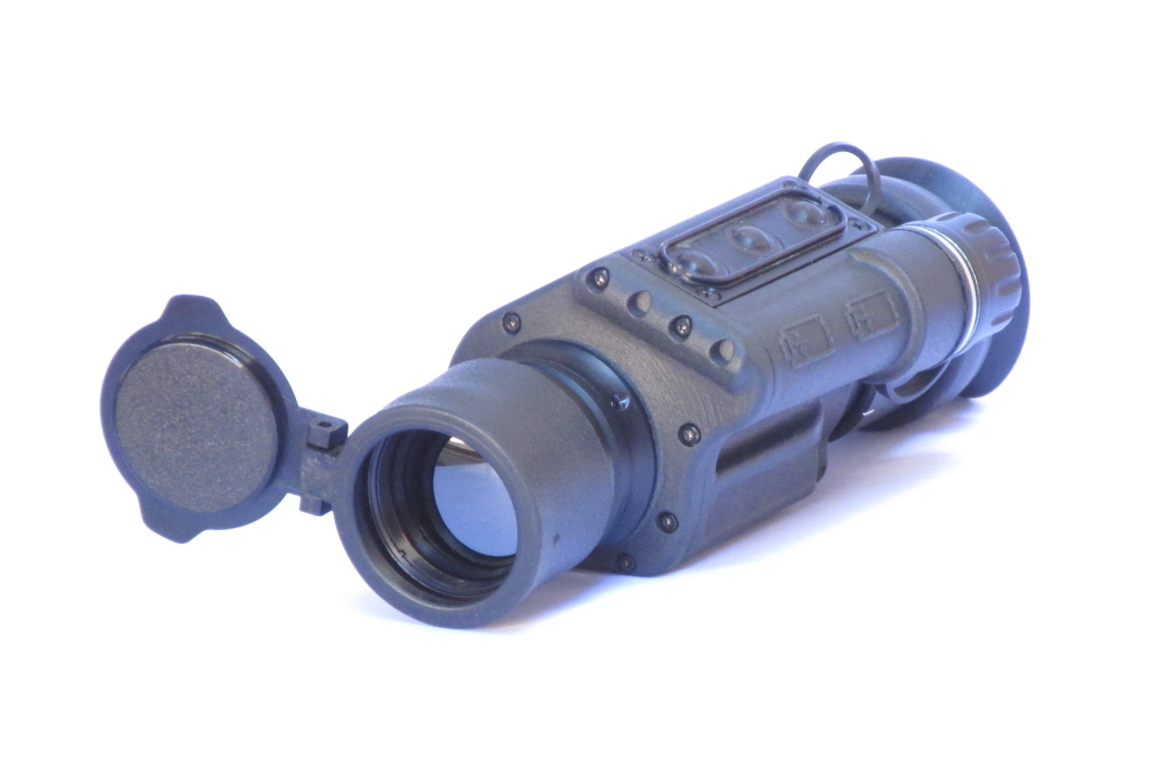

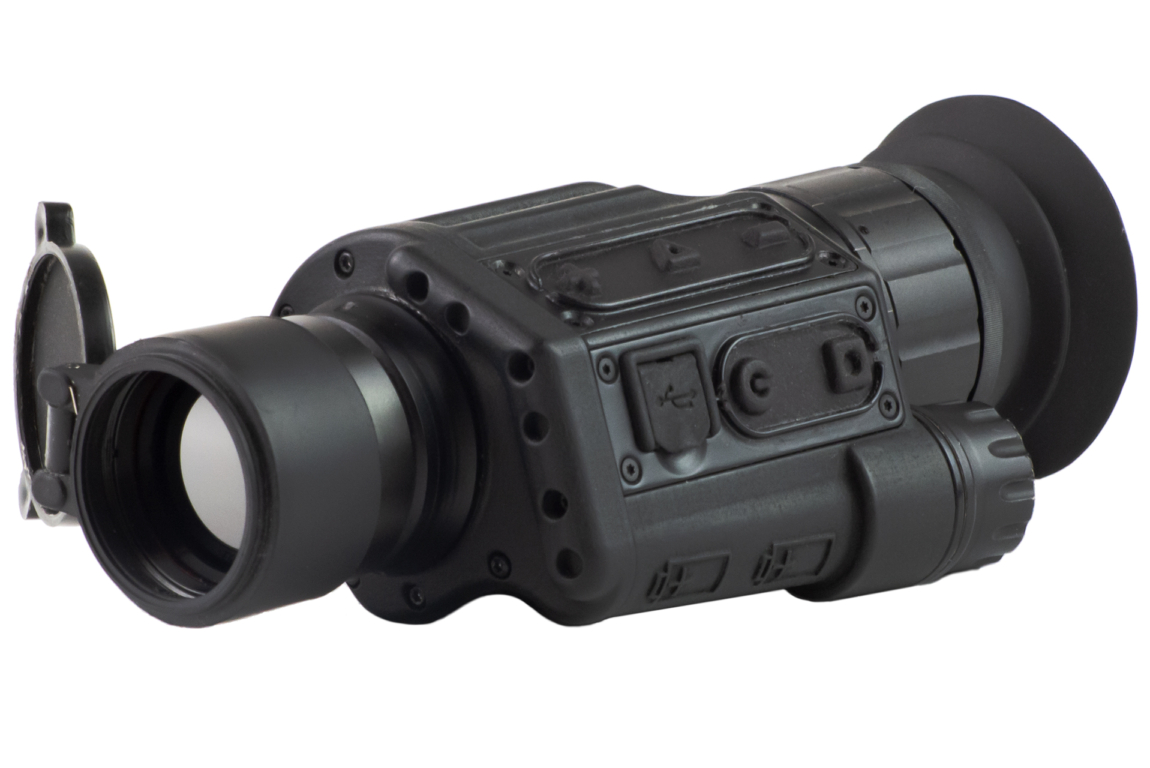

TEYE-2 is a family of hand-held thermal monoculars. There are designed for convenient land observation in various conditions. Each version is based on microbolometric detector and athermalized lens, which gives high-quality image in broad spectrum of temperatures. This lightweight and robust device is powerful enough to be used in a wide variety of situations, from hunting to tactical operations.
| TEYE-2 | ||
|---|---|---|
| Optical parameters | ||
| Field of view | 10.7º | 17.6º |
| Magnification | 2× | 1,2× |
| Digital zoom | 2× | |
| Detector | ||
| Type | uncooled bolometric FPA | |
| Resolution | 384×288 px | 640×480 px |
| Pixel size | 17 μm | |
| Spectral response | 8 to 12 μm | |
| Sensitivity | NEDT < 50 mK | |
| Display | ||
| Type | colour OLED matrix | |
| Resolution | 800×600 px | |
| Auxiliary video output | analogue PAL | |
| Power | ||
| Type | 2 batteries CR123 AA | |
| Working time | more than 4 hours | |
| Physical parameters | ||
| Operating temperature range | -30 ºC to 50 ºC | |
| Weight with batteries | 370 g / 13 oz | |
